A standard IBC tote measures 48 × 40 inches, with height varying by capacity. A 275-gallon IBC tote stands about 46 inches tall, while a 330-gallon IBC tote stands about 53 inches tall. These dimensions match a standard shipping pallet, making IBC totes easy to store, stack, and transport.
This guide breaks down every common size, explains what changes between them, and shows you how to pick the right one for your setup.

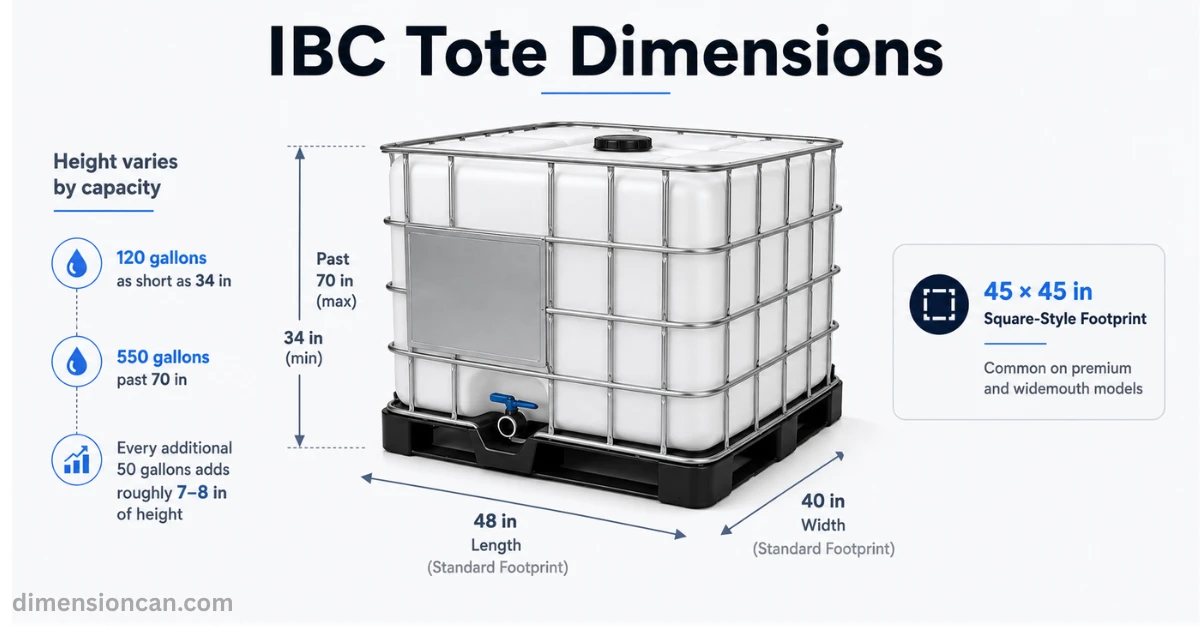

What Are Standard IBC Tote Dimensions?
Standard IBC Tote Footprint (Length x Width)
The 48″ x 40″ base shows up across nearly every plastic caged tote on the market. Some square-style totes use a 45″ x 45″ footprint instead, which is common on premium and widemouth models.
How Height Changes by Capacity
Height is the number that shifts most between sizes. A 120 gallon tote may stand as short as 34″, while a 550 gallon tote can reach past 70″. As a rule, every extra 50 gallons of capacity adds roughly 7 to 8 inches of height.
More Posts:License Plate Dimensions: US, International, Motorcycle & Frames

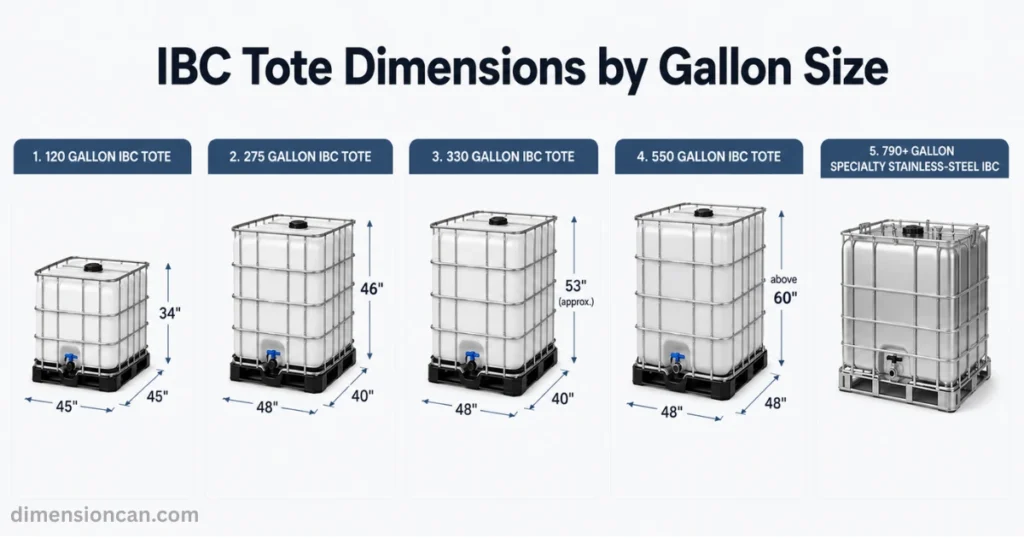

IBC Tote Dimensions by Gallon Size
275 Gallon IBC Tote Dimensions
The 275 gallon tote is the industry workhorse. It measures 48″ L x 40″ W x 46″ H and weighs around 130 to 155 lbs empty. Full of water, it tips the scale near 2,400 lbs. This size holds the equivalent of five standard 55 gallon drums, but takes up far less floor space.
330 Gallon IBC Tote Dimensions
The 330 gallon tote keeps the same 48″ x 40″ base but grows taller, to about 53“. You gain roughly 20% more volume without giving up any floor space. The tradeoff is weight. Full, it approaches 2,900 lbs.
550 Gallon IBC Tote Dimensions
The 550 gallon tote is built for maximum volume. Its footprint widens to about 48″ x 48″, and height climbs past 60″. Filled, it can weigh close to 4,800 lbs. This size needs heavier-duty pallets and more clearance, and it’s less common on the used market than the 275 or 330 gallon options.
Smaller & Larger IBC Sizes (110–120 Gallon and Beyond)
Smaller 120 gallon totes run around 45″ x 45″ x 34″ and suit lower-volume storage or tight spaces. On the other end, specialty stainless steel IBCs can scale past 550 gallons, sometimes up to 790+ gallons, for large industrial operations.

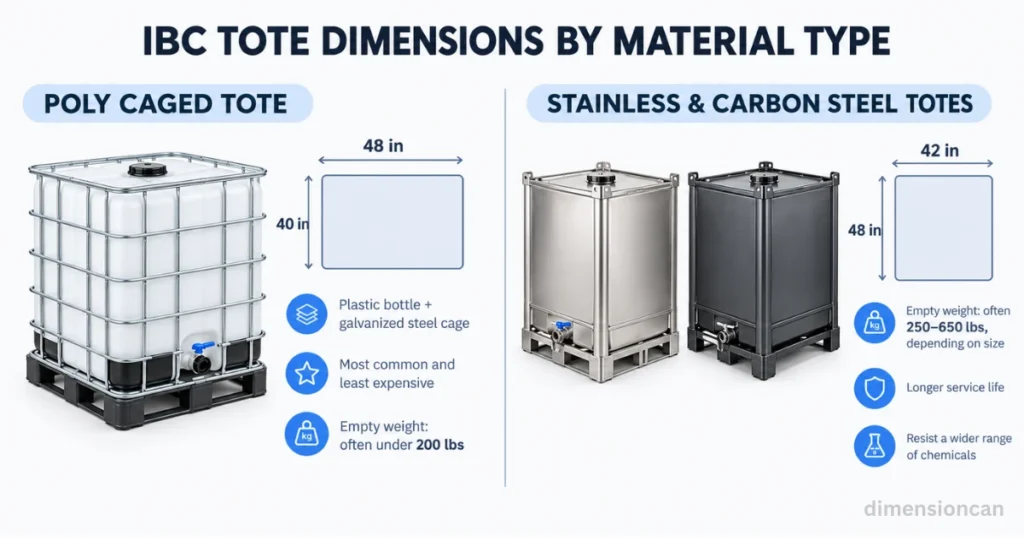

IBC Tote Dimensions by Material Type
Poly Caged Tote Dimensions
Poly caged totes — a plastic bottle wrapped in a galvanized steel cage — are the most common and least expensive option. They typically follow the 48″ x 40″ footprint and weigh the least when empty, often under 200 lbs.
Stainless & Carbon Steel Tote Dimensions
Stainless steel and carbon steel IBCs tend to run a 42″ x 48″ footprint instead. They’re heavier to start, often 250 to 650 lbs empty depending on size, but they last longer and resist a wider range of chemicals.
More Posts:Dryer Dimensions: Compact, Full-Size & Stackable
IBC Tote Dimensions for Stacking, Pallets, and Transport
Pallet Compatibility and Forklift Access
Nearly all IBC totes support 4-way forklift and pallet jack access, meaning you can lift them from any side. This is built into the base design and holds true across nearly every size and material on the market.
Stacking Height by Tote Size (Full vs. Empty)
Stacking rules depend on weight, not just size. Empty totes can often stack 3 to 4 high in storage. Full totes are usually limited to 2 high, since stacked weight adds pressure on the bottom unit’s cage or seams. Always check the tote’s stack test load rating, listed on its UN/DOT label, before stacking filled units.
How Many Totes Fit in a Standard Truck
A standard 53-foot freight truck can typically hold up to 60 caged totes in the 275 to 330 gallon range, arranged in 15 rows stacked 2 high. Larger 450 to 550 gallon totes usually cap out near 30 units per truck, since their height limits stacking to a single row in most trailers.
FAQs About IBC Tote Dimensions
What is the standard size of an IBC tote?
A standard IBC tote measures 48″ L x 40″ W, with height ranging from about 34″ to 71″ depending on gallon capacity.
What are the dimensions of a 275 gallon IBC tote?
A 275 gallon IBC tote measures 48″ L x 40″ W x 46″ H and weighs around 130 to 155 lbs empty.
What are the dimensions of a 330 gallon IBC tote?
A 330 gallon IBC tote measures 48″ L x 40″ W x 53″ H, roughly 7 inches taller than the 275 gallon version.
How tall is a 550 gallon IBC tote?
A 550 gallon IBC tote stands around 60 to 62 inches tall, with a wider 48″ x 48″ footprint.
Can IBC totes be stacked?
Yes. Empty IBC totes can usually stack 3 to 4 high. Full totes are generally limited to 2 high, based on the tote’s rated stacking test load.
Do all IBC totes fit standard pallets?
Most do. The 48″ x 40″ base matches the standard GMA pallet size used across US warehouses and freight trucks.
